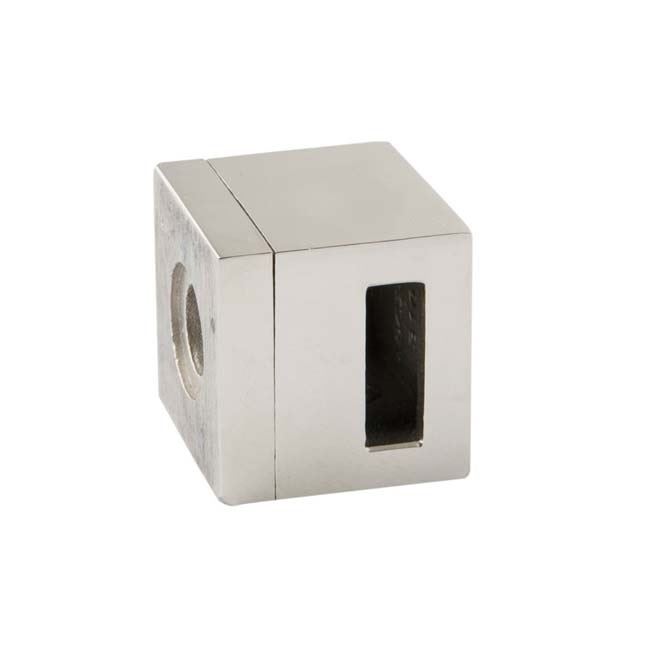

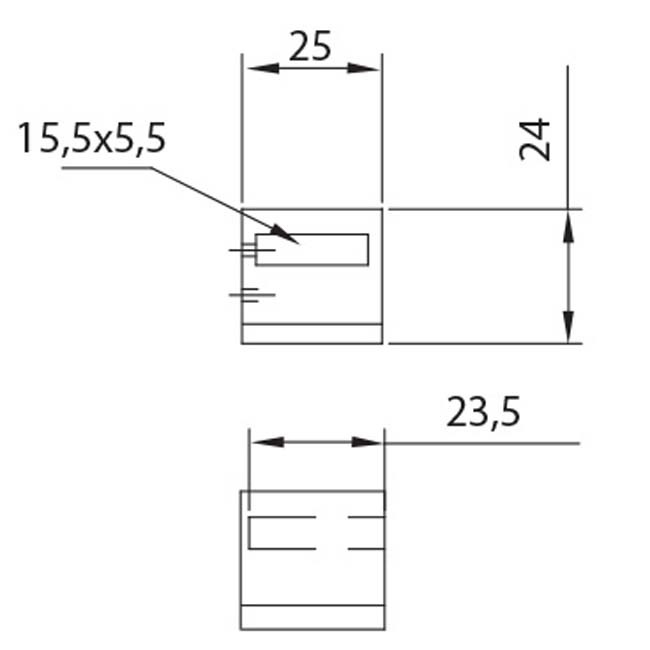

The end crossbar holder, left, AISI 316 stainless steel is an accessory for stainless steel squared handrail which function is to connect the tube and the platen. It has to be placed at the end of the platen and so used as an end cap. It is used for 15×5 platen. The position for the connector placement on the handrail is indicated through the screws position which should be on the bottom part of the item.
In Estebro, we offer you a wide range of accessory for stainless steel handrails for 40x40x1,5 mm tube… we also have a R-Line composed of accessories for stainless steel handrails in round tube to create stainless steel de Ø42,4×2 mm, Ø43×1,5 mm, Ø50,8×1,5 mm handrails.
If you are interested in this kind of accessories for stainless steel handrails and you would like to have more information or know the rest of our accessories for stainless handrails, you can keep exploring our website, download our catalogue or request more information.
Installation advice:
- Loosen the grub screws to separate both components from the connector: the base of the tube and the clamping of the platen.
- Drill and thread the tube
- Unite the base to the tube with stainless steel M.6 screws.
- Slide the platen in the drill of the holding element.
- Unite both elements and fix them by tightening the grub screws of the platen and the base
