Estebro, your specialists in gate hardware and stainless steel railing systems.

Base

Satainless Steel Handrail Squared Base
Satainless Steel Handrail Squared Base ABC115

Base:

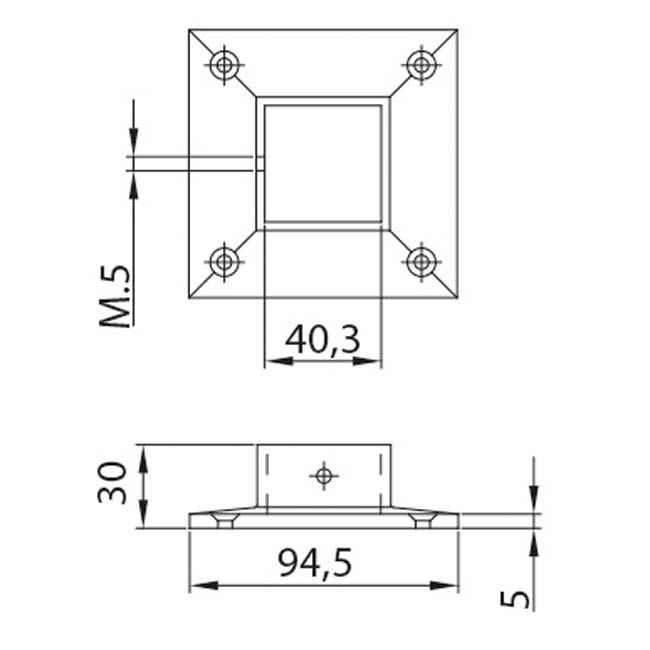

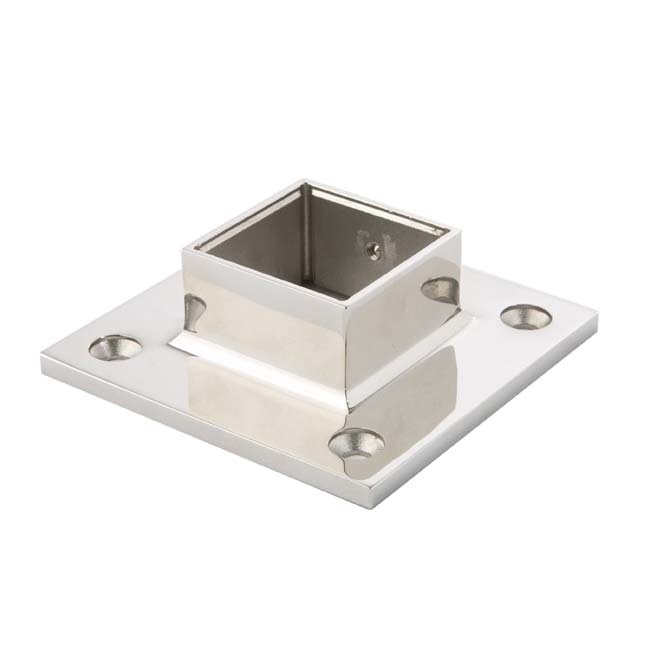

AISI 316 stainless steel base for stainless steel squared handrails for 40x40x1,5 mm tube.

AISI 316 stainless steel base for stainless steel squared handrails for 40x40x1,5 mm tube, available in satin and polish finish. The stainless steel base is the element of union between the floor and the tube is installed by fixing it to the floor with bolts and is united to the tube with a M.5 allen screw.

In Estebro, we have a large range of accessories for stainless steel handrails for  40x40x1,5 mm tube and other accessories for stainless steel handrails in round tube.

If you want, you can obtain further information by downloading our catalogue or by requesting information through our contact form.

Installation advice:

  1. Introduce the tube to the base and fix the grub screw to the base. The tube is perfectly fixed, if you want a mayor fixation, apply AD100 adhesive.
  2. Screw the base with bolts.
