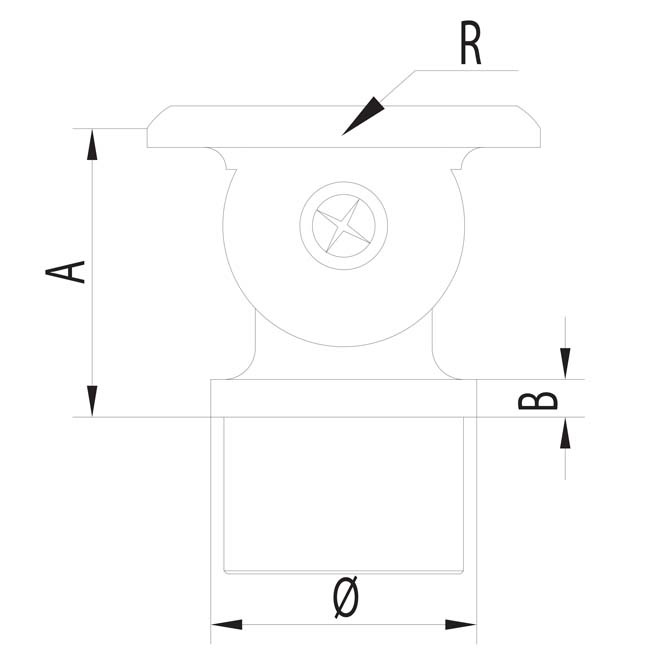

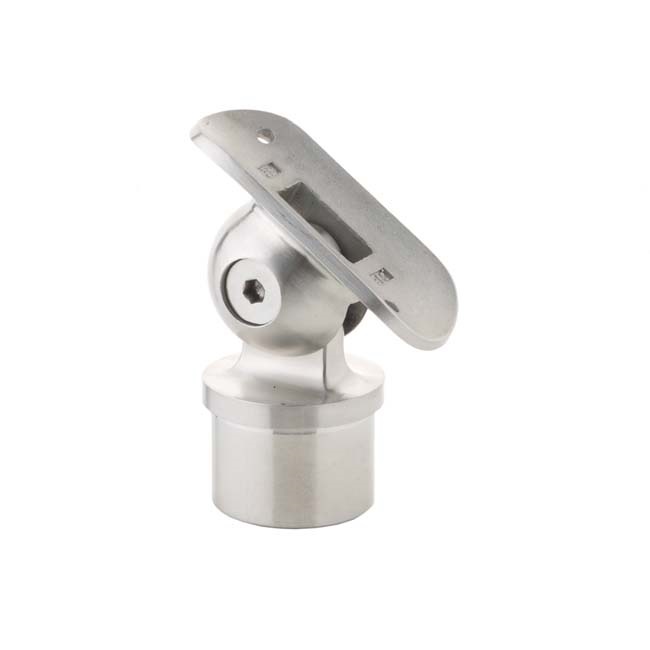

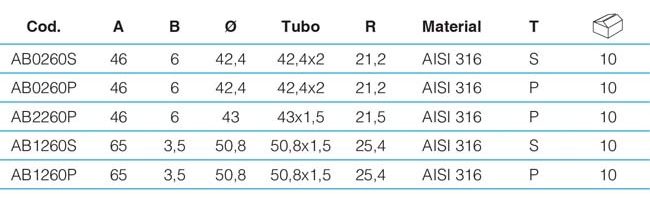

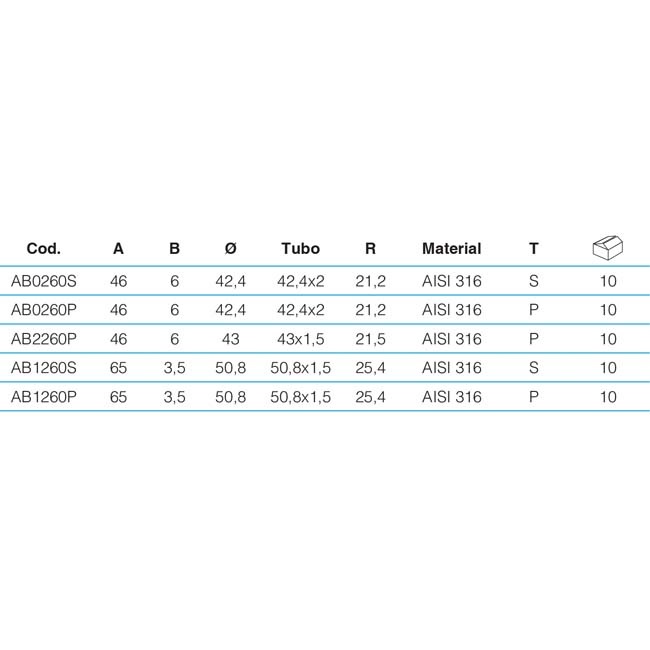

The adjustable ball handrail support is an accessory for stainless steel handrails. This support serves as a union between two perpendicular tubes, one of them being fixed to a plate with screws to the tube which will create the handrail. This accessory for handrails is available for tube: 42,4×2 mm, 43×1,5 mm and 50,8×1,5mm in AISI 316 stainless steel. Moreover, it has an adjustable angle function which makes possible the handrail adjustment.
Discover all our accessories for stainless steel handrails: G-Line: clamps for crystal handrails, C-Line: accessories for squared lines accessories, R-Line: accessories for round lines accessories. Stainless steel handrails: banisters kits and handrails tailor-made.
If you would like to have further information on accessories for stainless steel handrails or stainless steel banisters, do not hesitate to download our catalogues or request more information by filling our form.
Installation advice:
- Drill and thread the tube.
- Fix the support with AD100 adhesive (we recommend to clean carefully the areas to unite).
- Fix the support to the tube with 2 stainless steel M.5 screw.
If in the union screwed, you would like to reinforce the fixation, you can apply some drops of AD100 adhesive in the stainless steel screws, on this way, the union doesn´t have the possibility to be removed.
Download our catalog stainless steel handrails R-Line. You can download it after filling in the following form.
