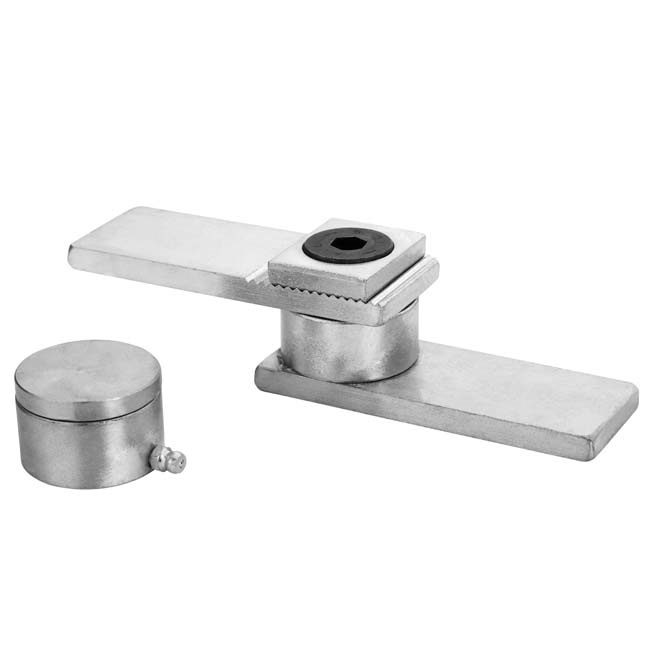

60mm pivot hinge with bearing.
The 60mm pivot hinge with bearing is an hardware valid for swing gates.
The pivot hinge permits the opening and closing of the swing gates.
The upper part of the pivot hinge has two grooved splints for a better adjustment of the lever. We manufacture this hardware as in steel as in stainless steel, available as a complete set or single.
Would you like to know how this pivot hinge should be installed on a swing gate?
Click on the installation tab in order to know all the installation details.
In Estebro, we are manufacturer of gates hardware. We trust on the quality of our hardware, the research, the development and the best customer service. In this section, you will discover our hardware for swing gates.
I you would like to have further information on our 60mm pivot hinge with bearing or on our hardware for swing gates, you can request it through our contact form located in the information request tab. We will get back to you as soon as possible.

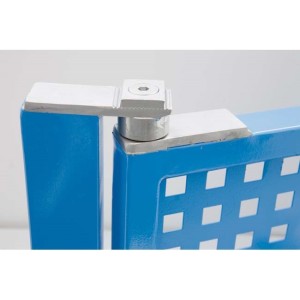

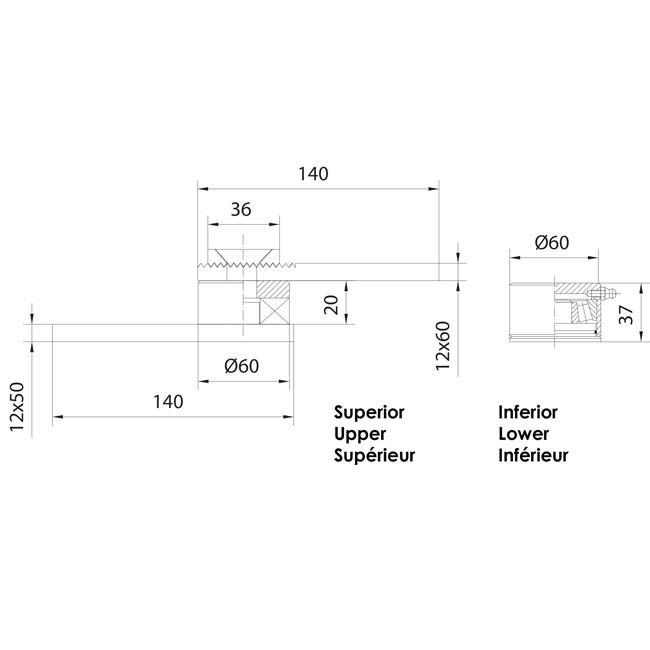

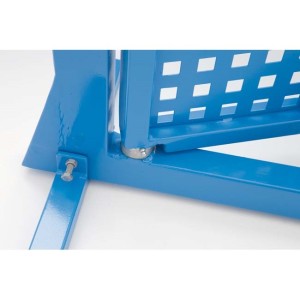

- Installation: The 60mm pivot hinge with bearing is composed of 2 parts: the upper part is installed by welding the square to the upper part of the door and the plate to the frame, or by fitting it into the concrete of the wall. The lower part is welded to the piece installed on the floor and to the lower part of the door, allowing its opening and closing.
Download our catalog swing doors hardware. You can download it after filling in the following form.
